Cleveland Museum of Art Roof Canopy

Designed by Sasaki Associates, the initial concept included a building buried into the hillside with a concrete roof canopy emerging over a glass facade and large glass doors. They envisioned the roof soffit would be visible to museum visitors through the glass doors.

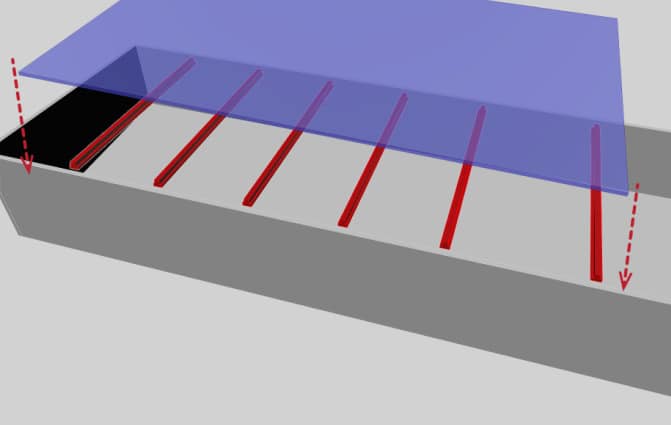

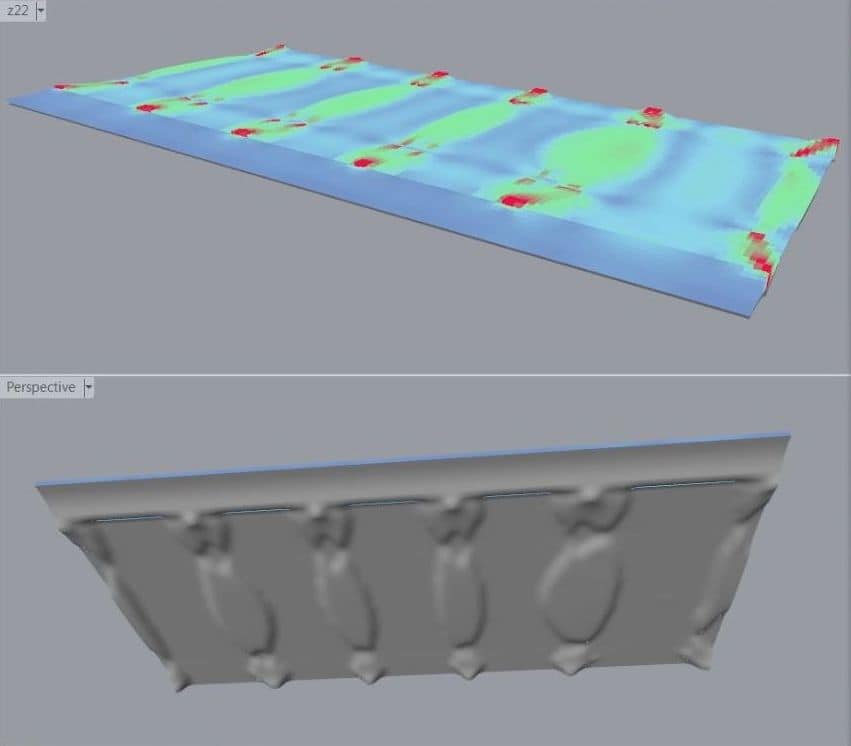

To maximize structural performance and minimize materials, SGH developed a concept for the roof slab by redistributing the slab thickness based on stiffness and maximum stress values. Through an iterative optimization process, we balanced geometry and strength of the slab to achieve a visually interesting form for the roof canopy. SGH also reduced the canopy depth at areas with lower bending stresses by capitalizing on the volumetric and fluid nature of concrete.

We recognized the computational process offered opportunities for transferring our modeling effort to digital fabrication of the concrete formwork. By collaborating with CW Keller, we successfully proposed a cost-effective process to accomplish a signature roof profile.
