Boston, MA

Horace Mann School for the Deaf and Hard of Hearing

Scope/Solutions

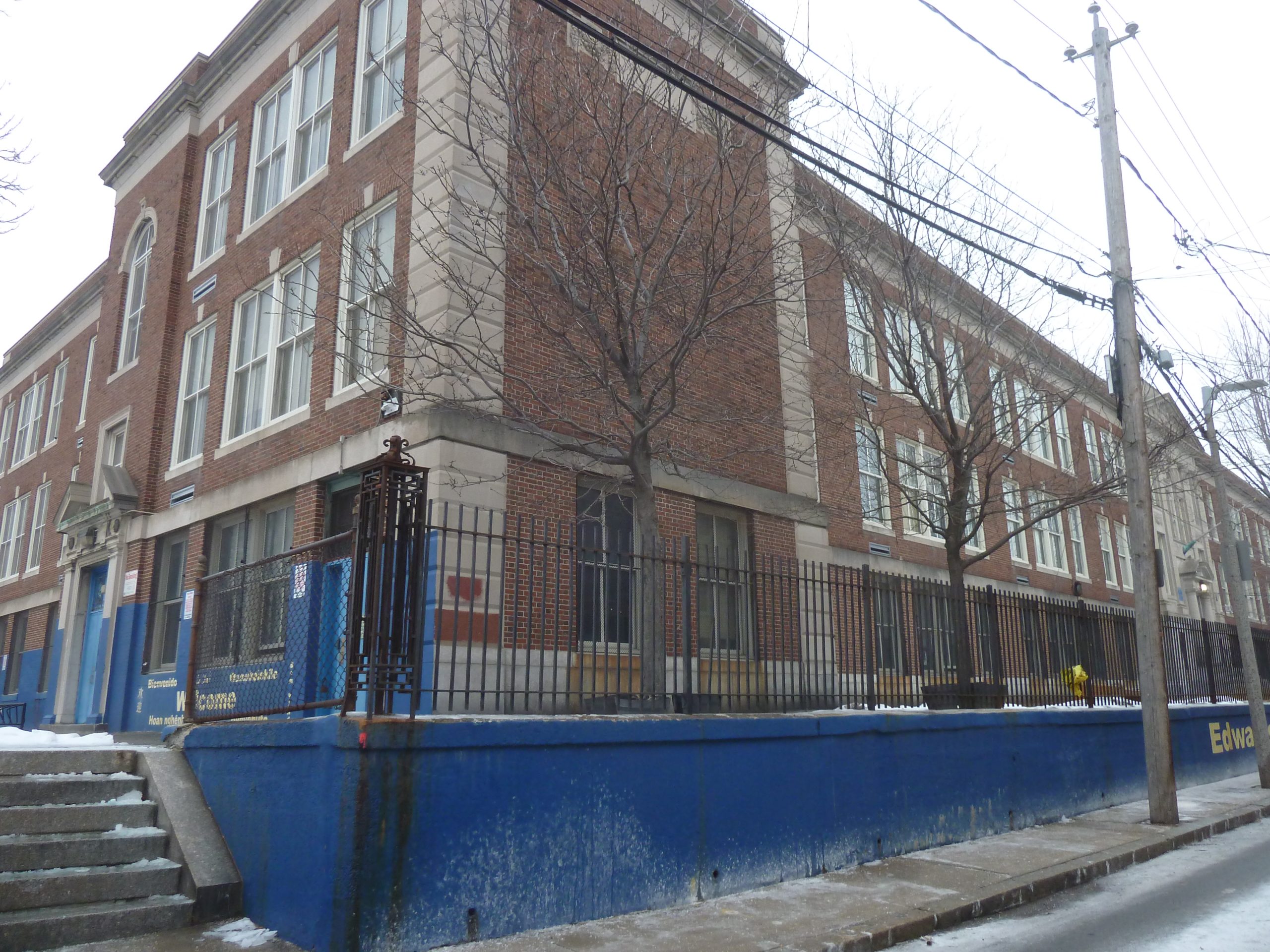

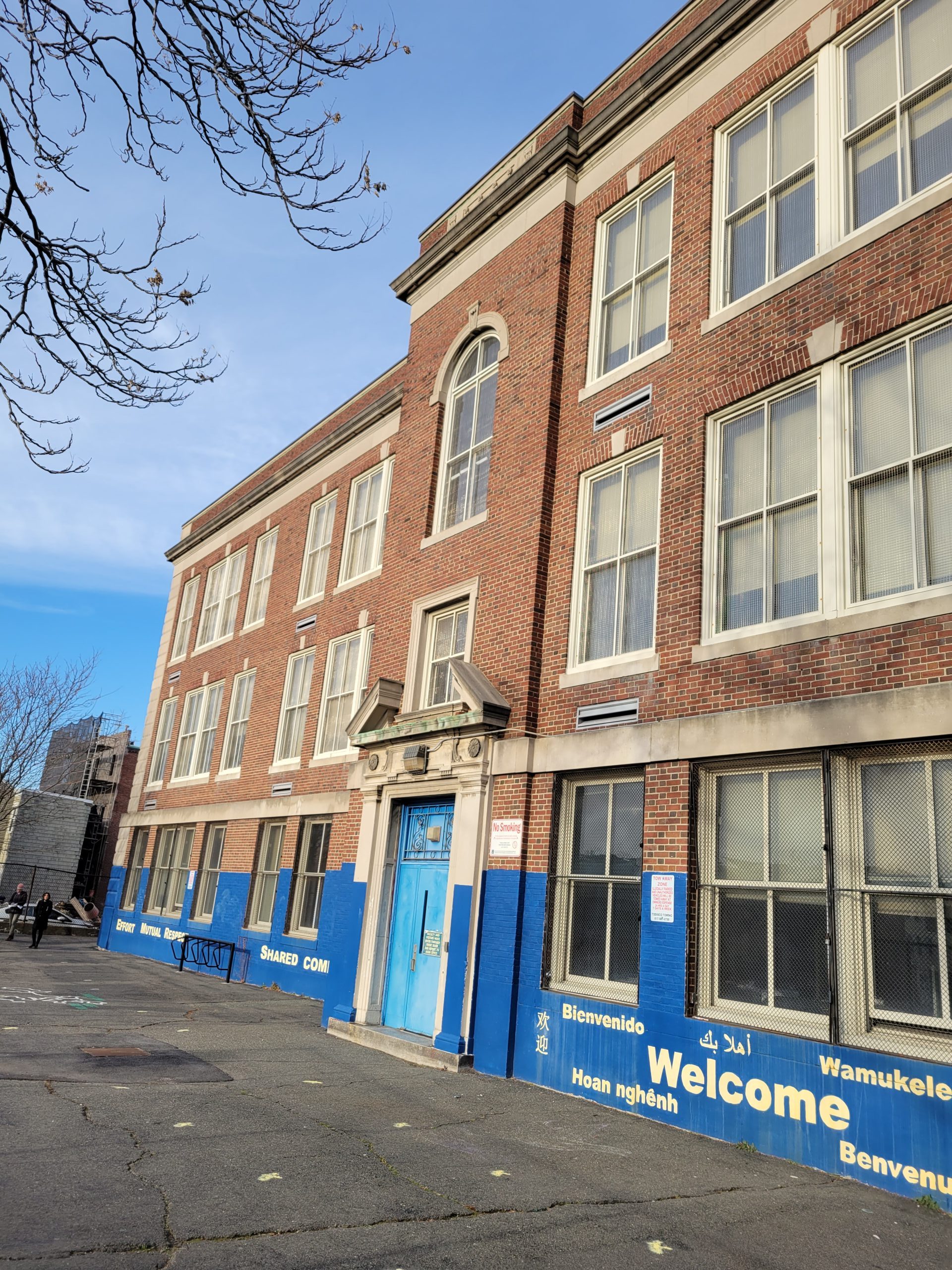

The Horace Mann School, the country’s oldest public day school for the deaf and hard of hearing, is temporarily relocating to the Edwards School building in Charlestown, Massachusetts. The 1931 Edwards School is a three-story concrete and masonry structure that is being renovated to accommodate the new students. SGH is serving as the structural engineer of record for the project.

The project includes modernizing and upgrading the building to meet current code requirements for accessibility and guidelines for the hearing impaired. SGH designed structural modifications, including:

  • A new elevator core within the existing masonry walls and an elevator pit supported on helical piles
  • A new interior ramp constructed with light-gauge steel framing and designed to minimize the additional weight on the existing structure
  • Resupporting the existing concrete slab at new floor openings
  • Adding new framing to support an audio booth

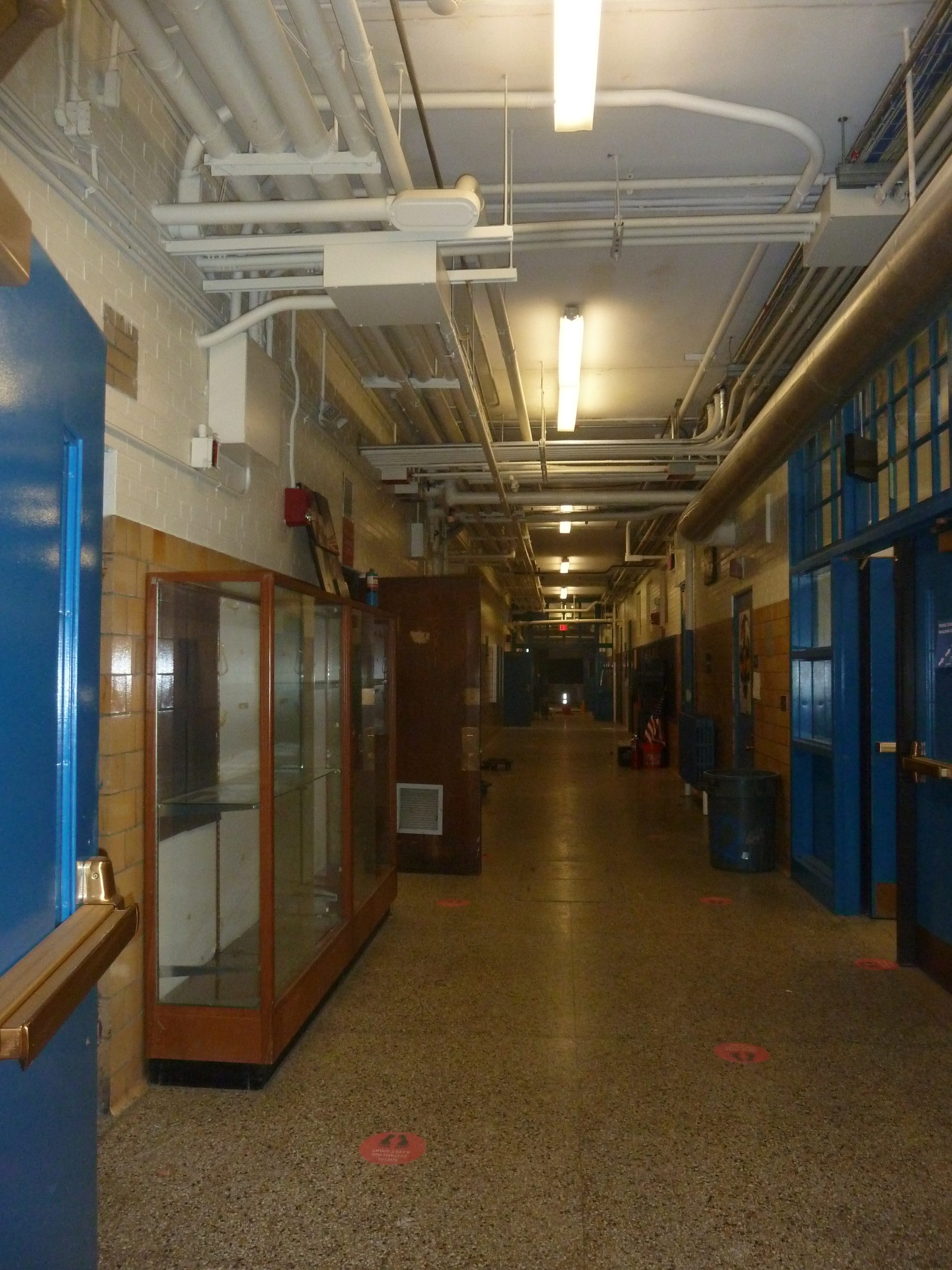

  • Openings in the existing masonry walls to accommodate the reconfiguration of spaces and new mechanical systems
  • New dunnage structures to support new mechanical equipment, strategically located to minimize strengthening the existing structure

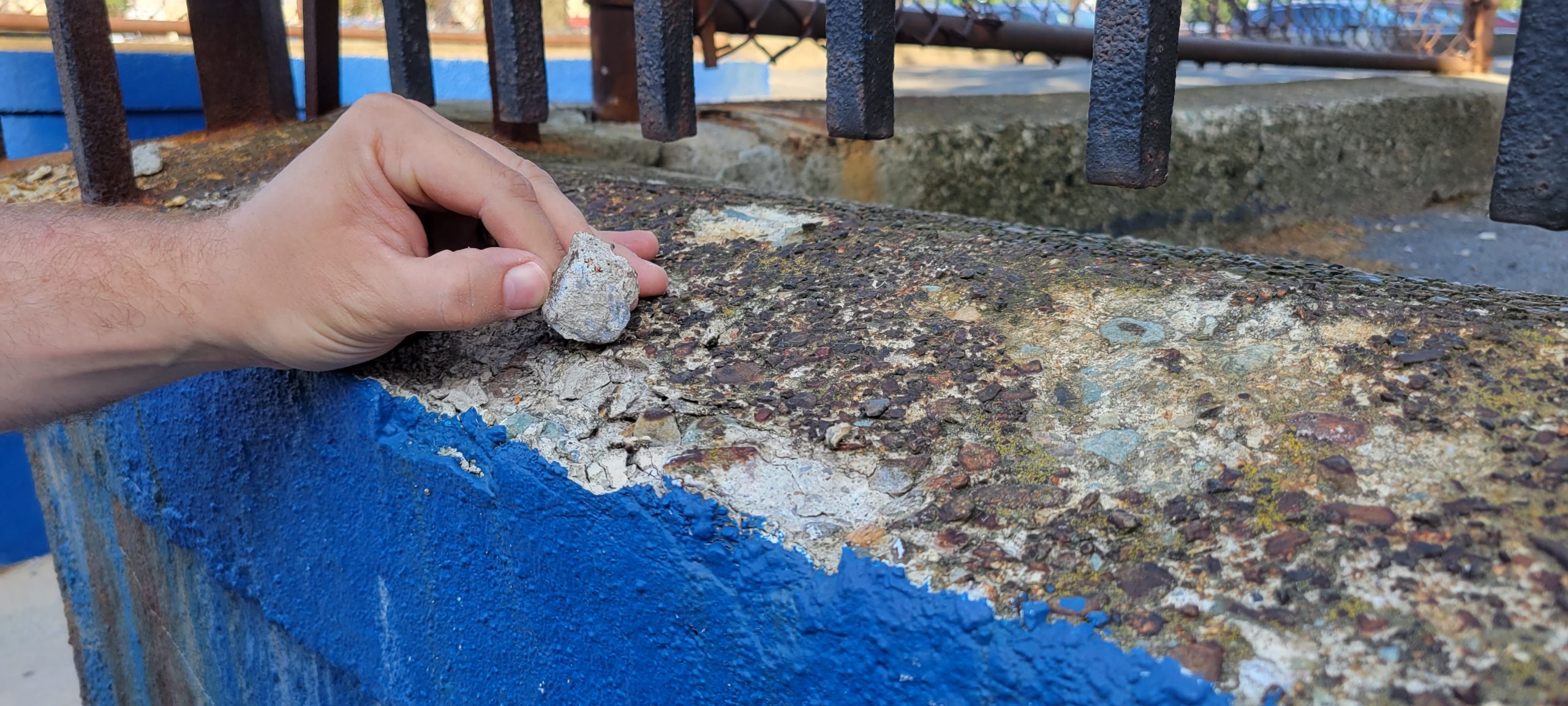

  • Repairs to address concrete deterioration at existing perimeter site walls

Project Summary

Icon: completion-date

2024 (anticipated)

Completion Date
Icon: construction-value

25M

Construction Value
Icon: building-size

82K

Project Size
Solutions
Repair & Rehabilitation
Services
Structures
Markets
Education
Client(s)
Machado Silvetti
Specialized Capabilities
Repair & Strengthening

Key team members

Paul Kassabian
Principal
781.907.9258 pekassabian@sgh.com
Charlotte Bouvier
Senior Project Manager
781.907.9000 cabouvier@sgh.com
