Boston, MA
Residence Inn Back Bay-Fenway
Scope/Solutions

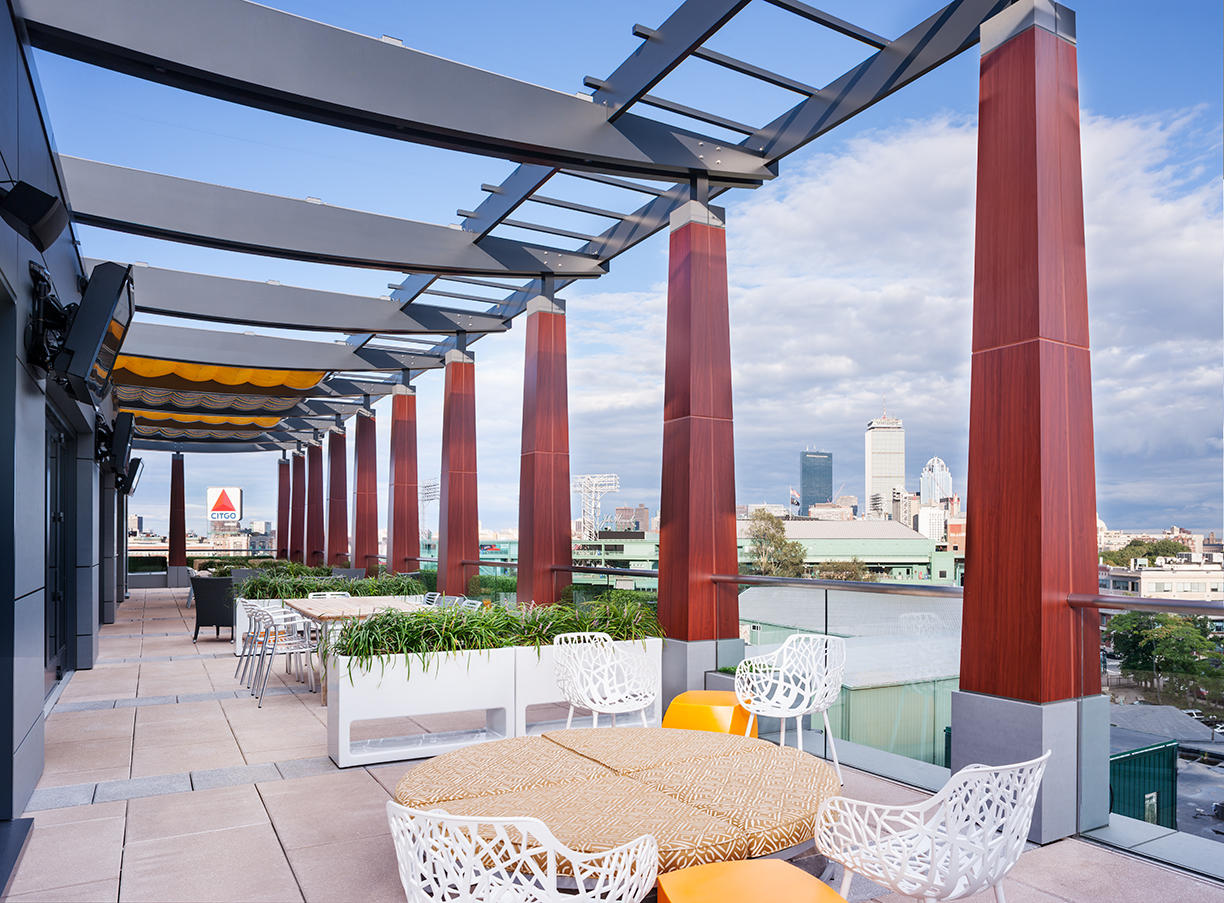

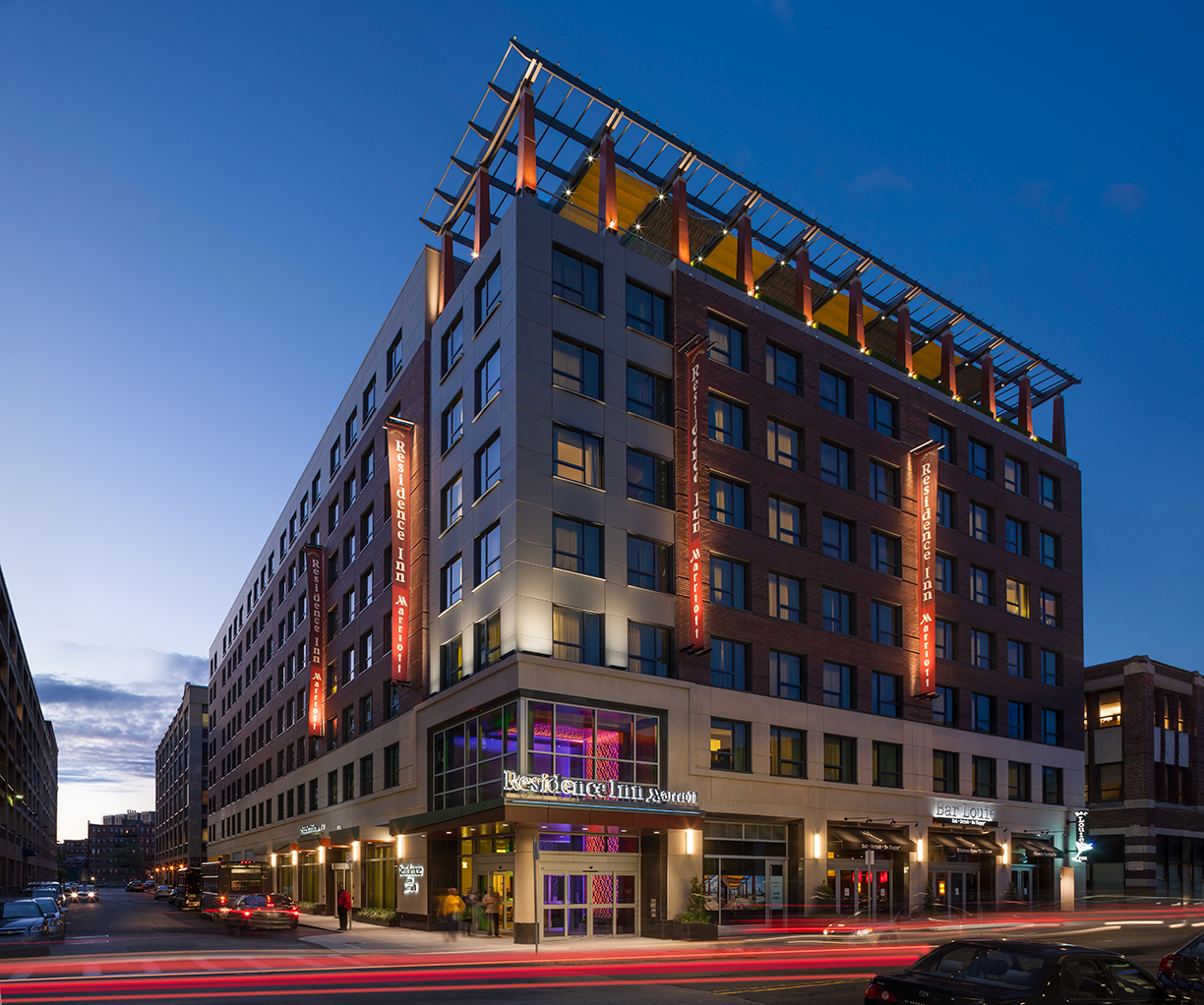

Located near Fenway Park and Kenmore Square, Residence Inn Back Bay-Fenway is a 175-room, extended-stay hotel. The 117,000 sq ft, eight-story building includes below-grade parking, ground-floor retail, an indoor swimming pool, and a rooftop terrace. SGH consulted on the building enclosure design.

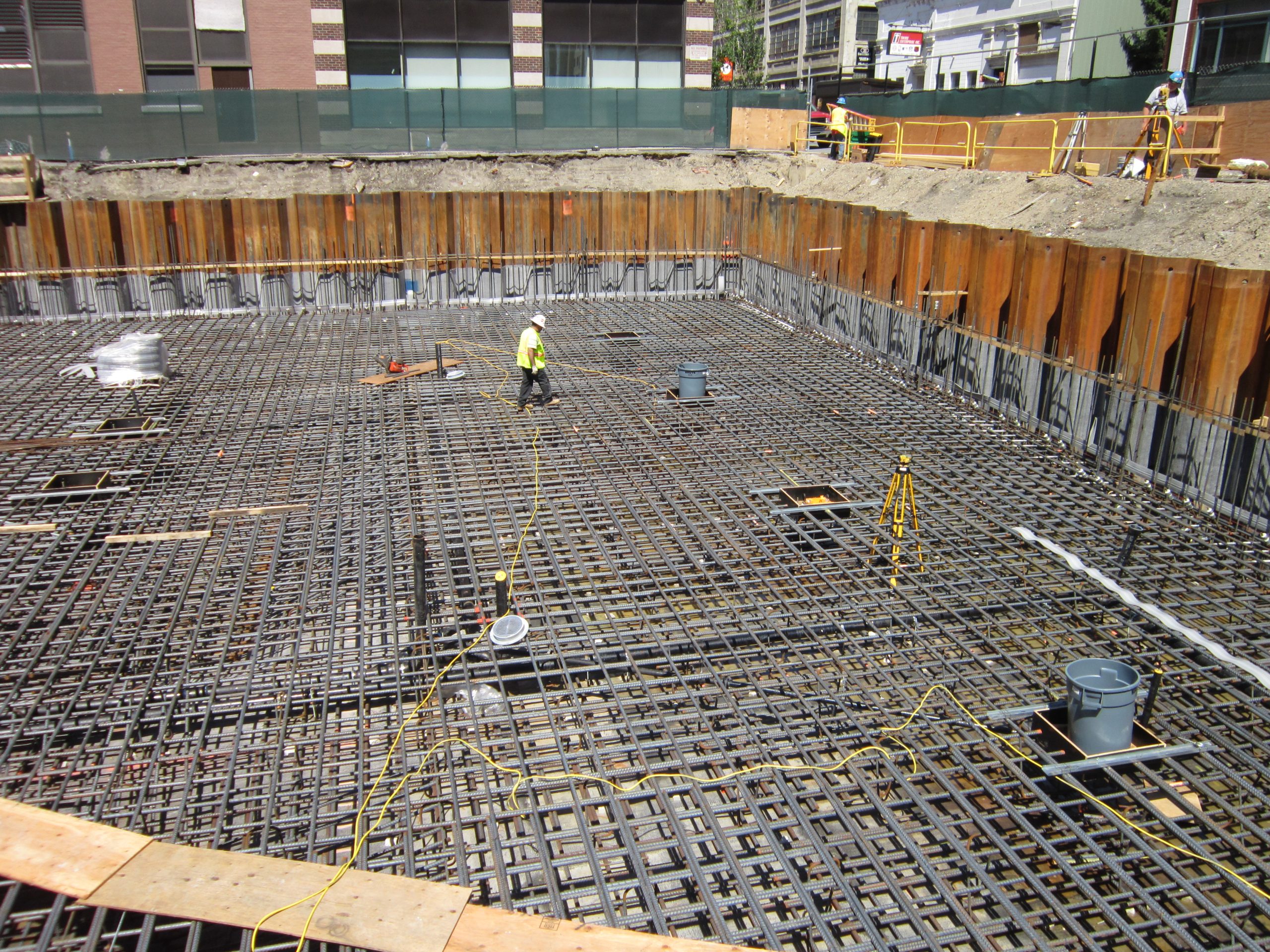

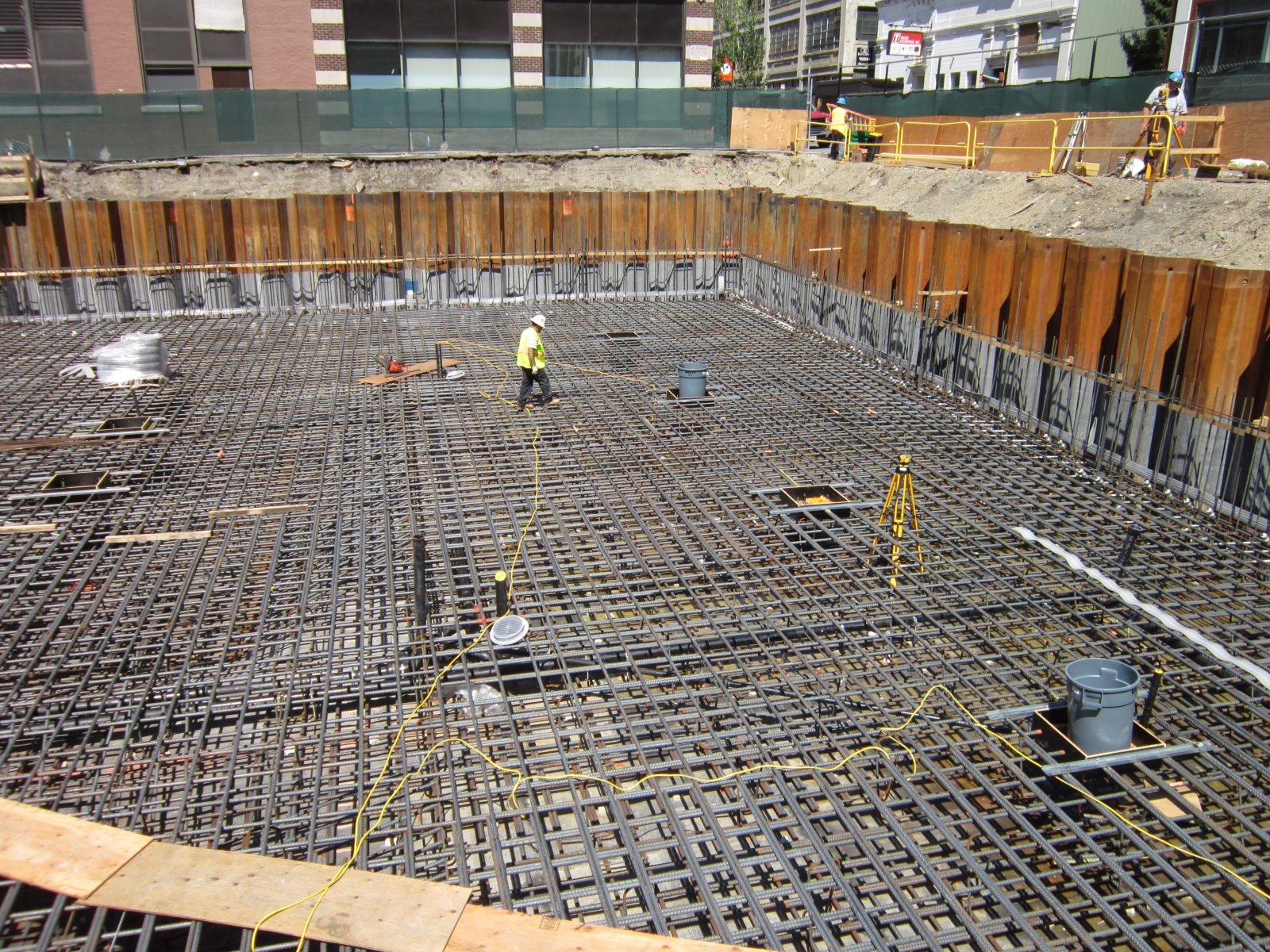

SGH assisted with designing the building enclosure, including below-grade waterproofing, wall and fenestration systems, terrace and balcony waterproofing, and roofing. Highlights of our work include the following:
- Reviewing the enclosure design and providing recommendations to improve performance
- Developing details to integrate the various enclosure systems
- Reviewing the design for interior walls separating dissimilar environments, including the indoor pool enclosure
- Evaluating and establishing criteria for heat flow, vapor diffusion, air leakage, and waterproofing
- Calculating as-designed exterior wall assembly U-Factors for energy code compliance
- Providing construction administration services, including reviewing contractor submittals, shop drawings, and requests for information about the building enclosure and visiting the site to review construction progress to compare with the design intent

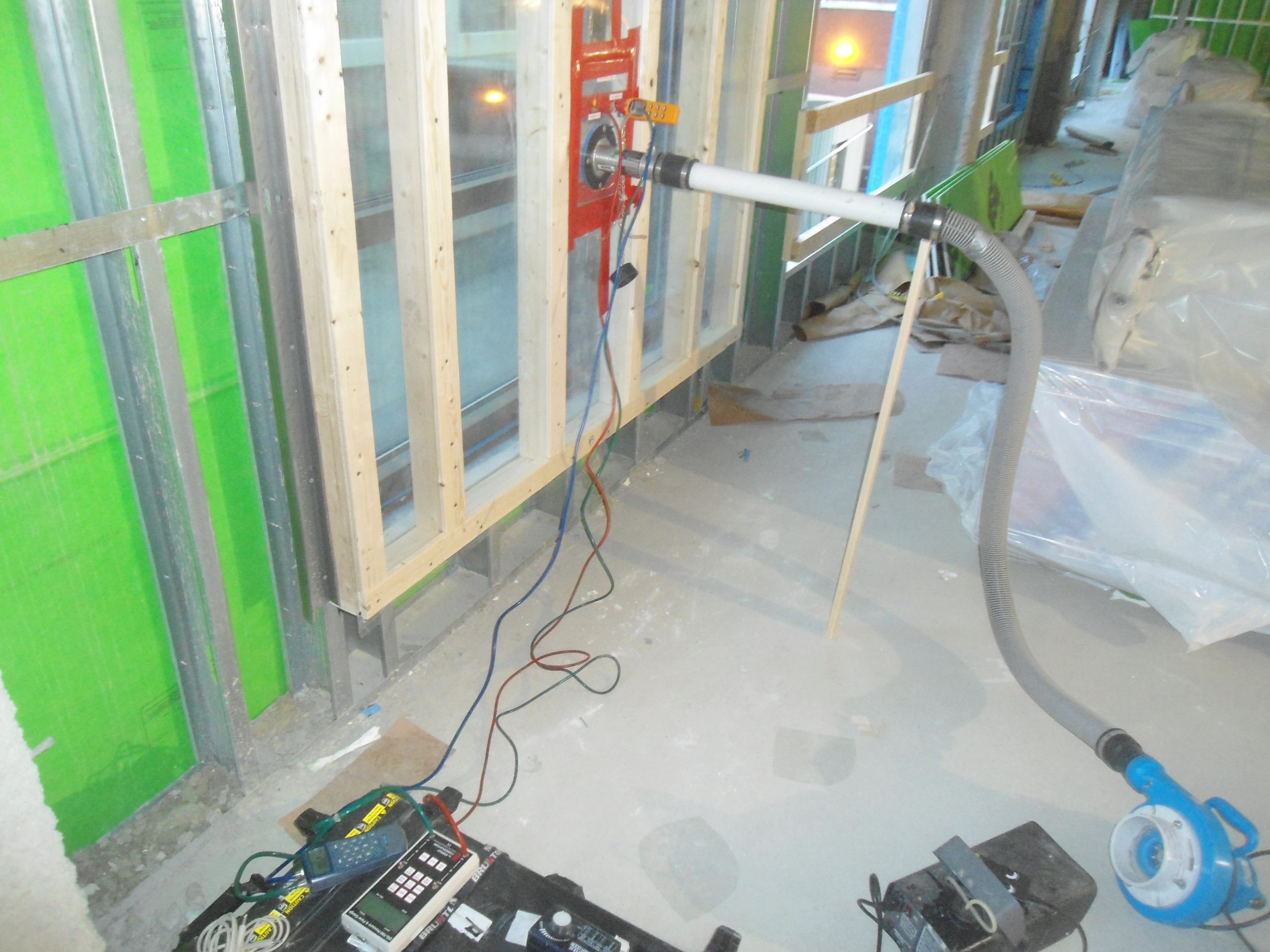

- Conducting field air and water infiltration testing of curtain wall systems
Photo credit: Warren Jagger
Photo credit: Warren Jagger
1 of 5
Project Summary
2013
Completion Date
65M
Construction Value
Solutions
New Construction
Services
Building Enclosures | Performance & Code Consulting
Markets
Commercial
Client(s)
Group One Partners, Inc.
Specialized Capabilities
Building Science | Roofing & Waterproofing | Energy & Sustainability
