Roxbury, MA

Bridge Boston Charter School

Scope/Solutions

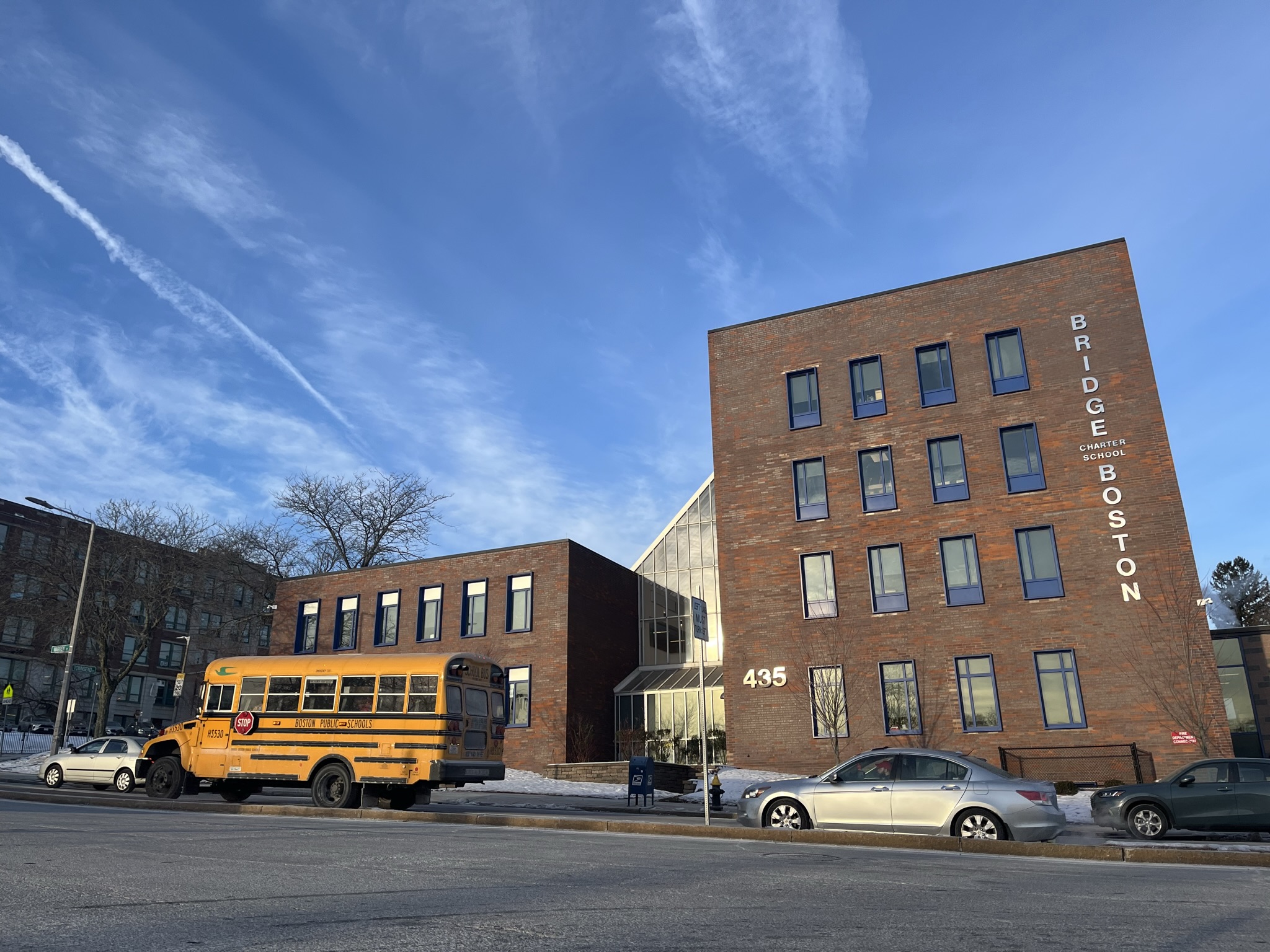

Bridge Boston Charter School offers an intensive, success-focused learning program for the city’s at-risk students. To support the program’s expansion to include third through eighth graders, the charter looked to repurpose a building formerly used as a community health center. SGH was the structural engineer of record for the adaptive reuse of the 1970s brick masonry structure, and construction of a new 3,000 sq ft addition and stand-alone gymnasium.

Highlights of our work include the following:

  • Evaluating the existing five-story building for the change in use
  • Collaborating with the architect to select locations for rooftop equipment pads and mechanical screen walls on the existing building’s roof, and designing strengthening for the roof framing to support the new equipment
  • Designing structural modifications to support interior renovations, including:

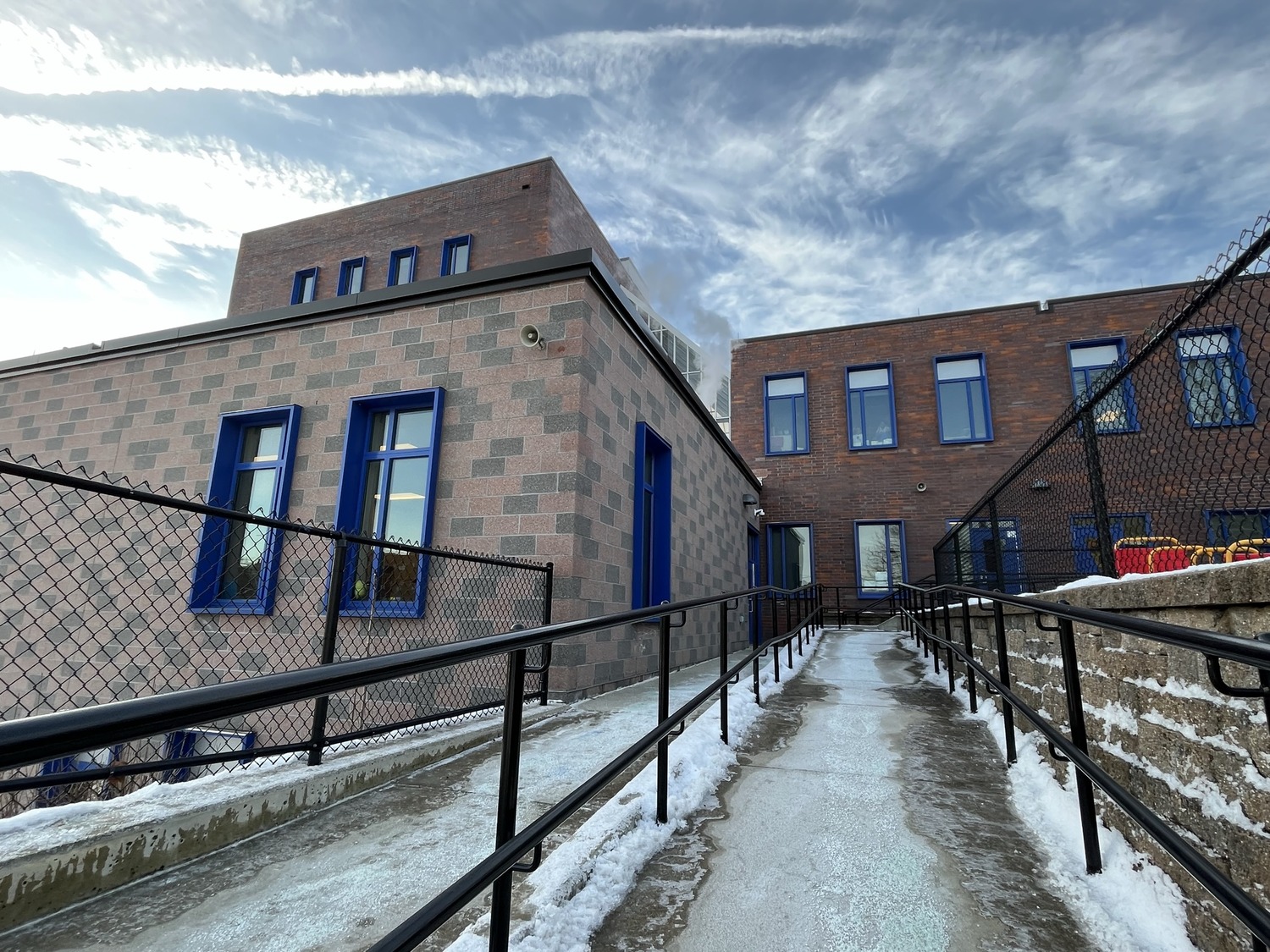

    • A light gauge ramp and platform to provide access between the existing building and new addition
    • Expansion of the existing elevator shaft to accommodate a modern, higher‑capacity elevator
    • New window openings on every elevation, tripling the total number of windows
    • An enlarged door opening and new feature canopy at the main entrance
  • Designing the steel-framed addition nestled into a previous building entrance and surrounded by existing structures on three sides

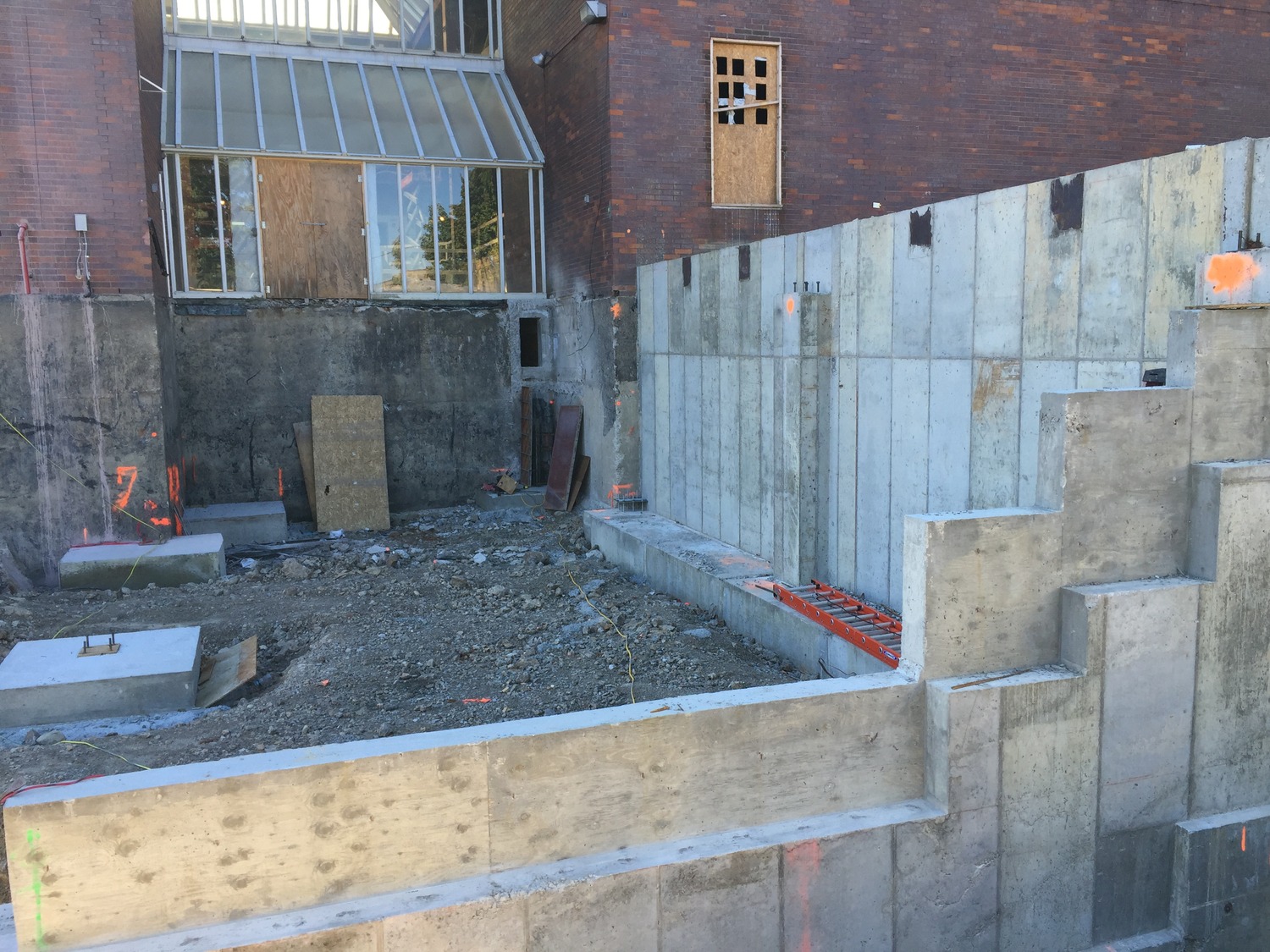

  • Investigating the condition and construction of existing foundations, developing a design to avoid compromising the original footings scheduled to remain in place, and designing concrete foundations for the prefabricated gymnasium structures
  • Designing a retaining wall extending more than 12 ft tall to support changes in grade around the existing site

Project Summary

Icon: completion-date

2017

Completion Date
Icon: construction-value

15.5M

Construction Value
Icon: building-size

46K

Project Size
Solutions
Repair & Rehabilitation
Services
Structures
Markets
Education
Client(s)
HMFH Architects
Specialized Capabilities
Building Design | Repair & Strengthening

Key team members

Rebecca Lubrano
Senior Project Manager
781.907.9372 rhlubrano@sgh.com
Paul Kassabian
Principal
781.907.9258 pekassabian@sgh.com
