Roslyn Harbor, NY
Cedarmere Mill
Scope/Solutions

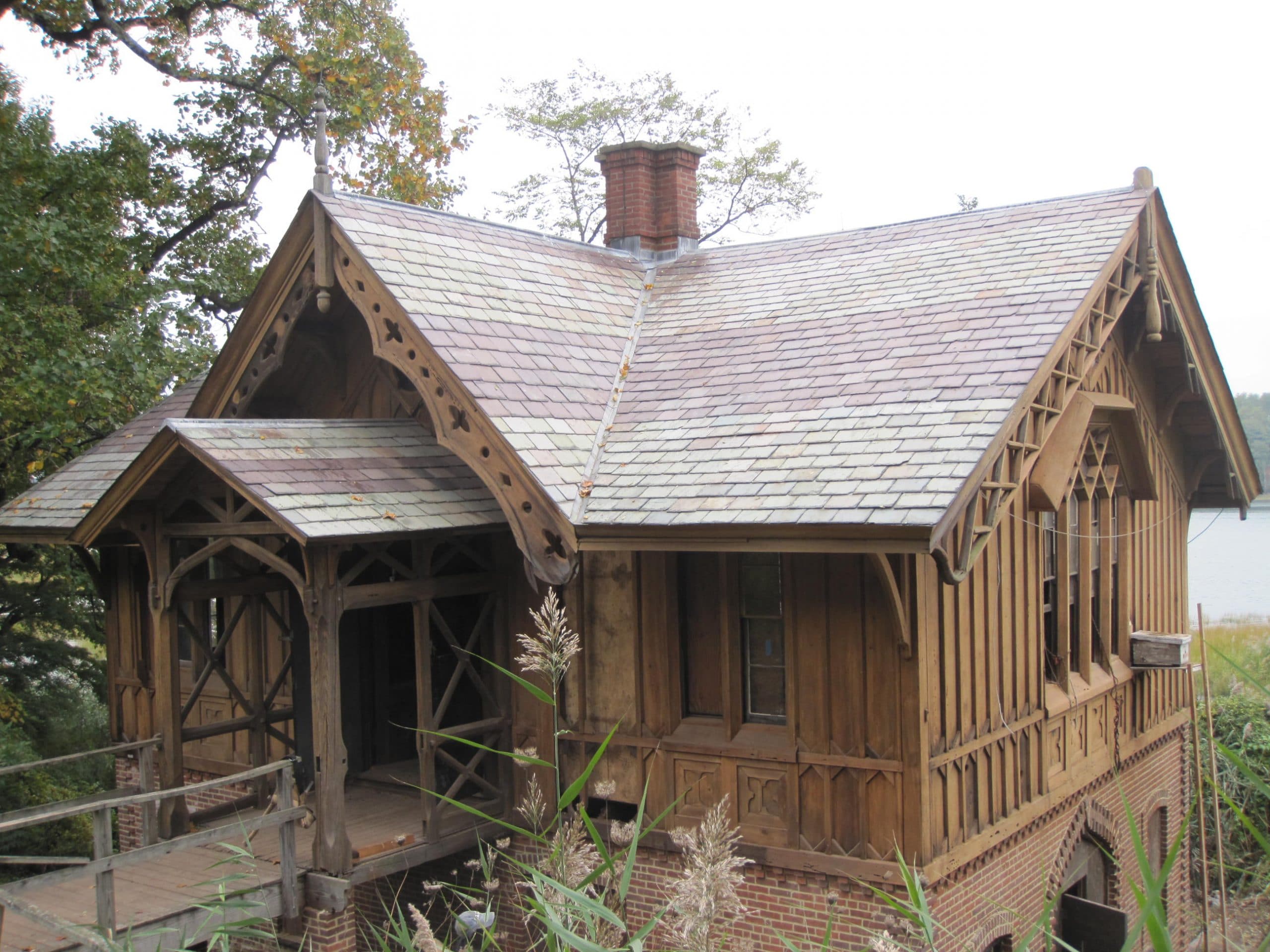

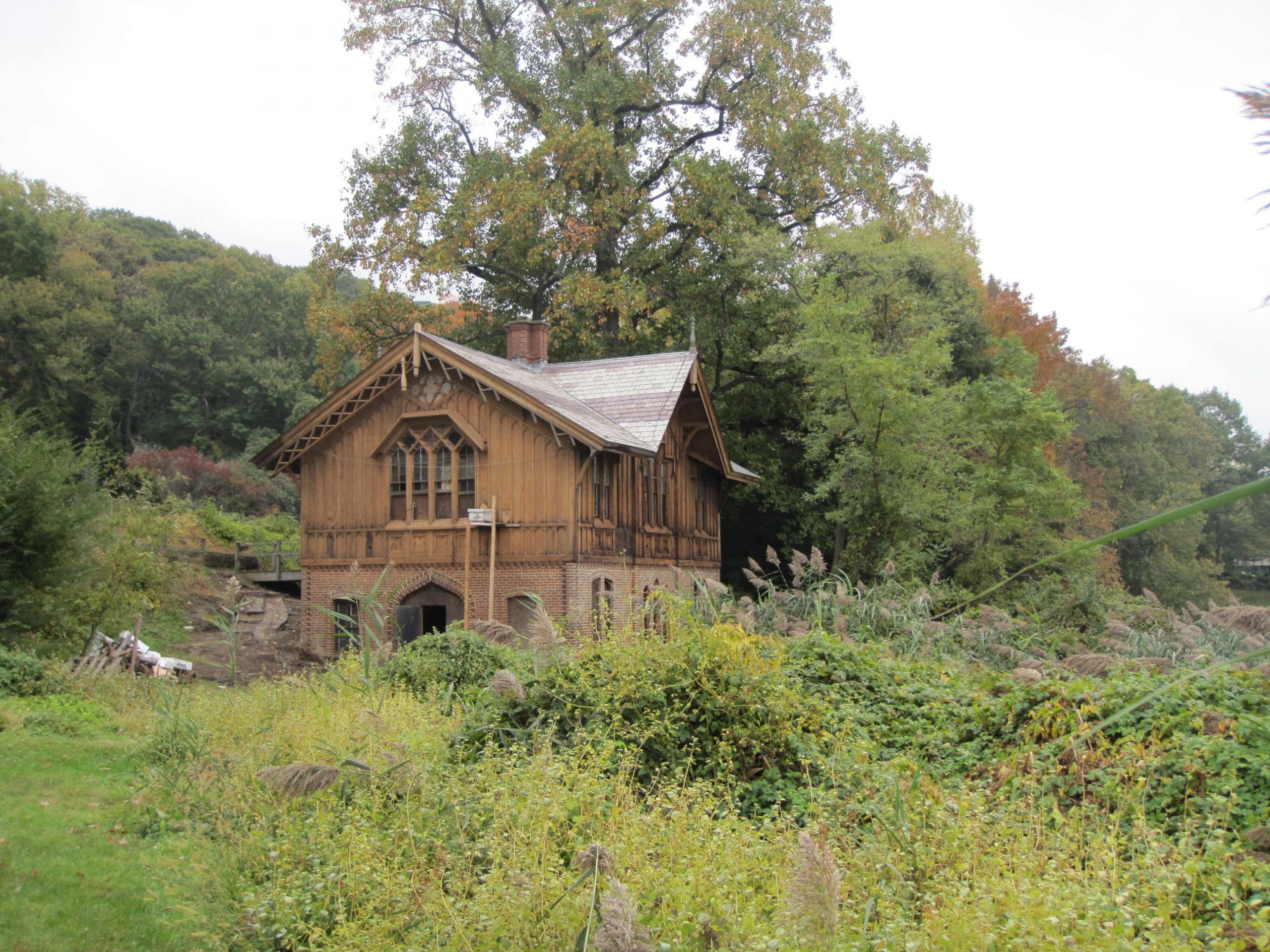

Cedarmere was named by William Cullen Bryant, who purchased the forty-acre property in 1843. Bryant constructed the mill in 1862 in the Gothic Revival style. Page Ayres Cowley Architecture was leading a major restoration to the mill and observed sagging roof rafters around an infilled skylight and a deteriorated valley rafter. SGH evaluated the existing roof framing conditions and helped develop structural strengthening.
Highlights of our work include the following:
- Reviewing available documents to understand the planned work and the existing conditions

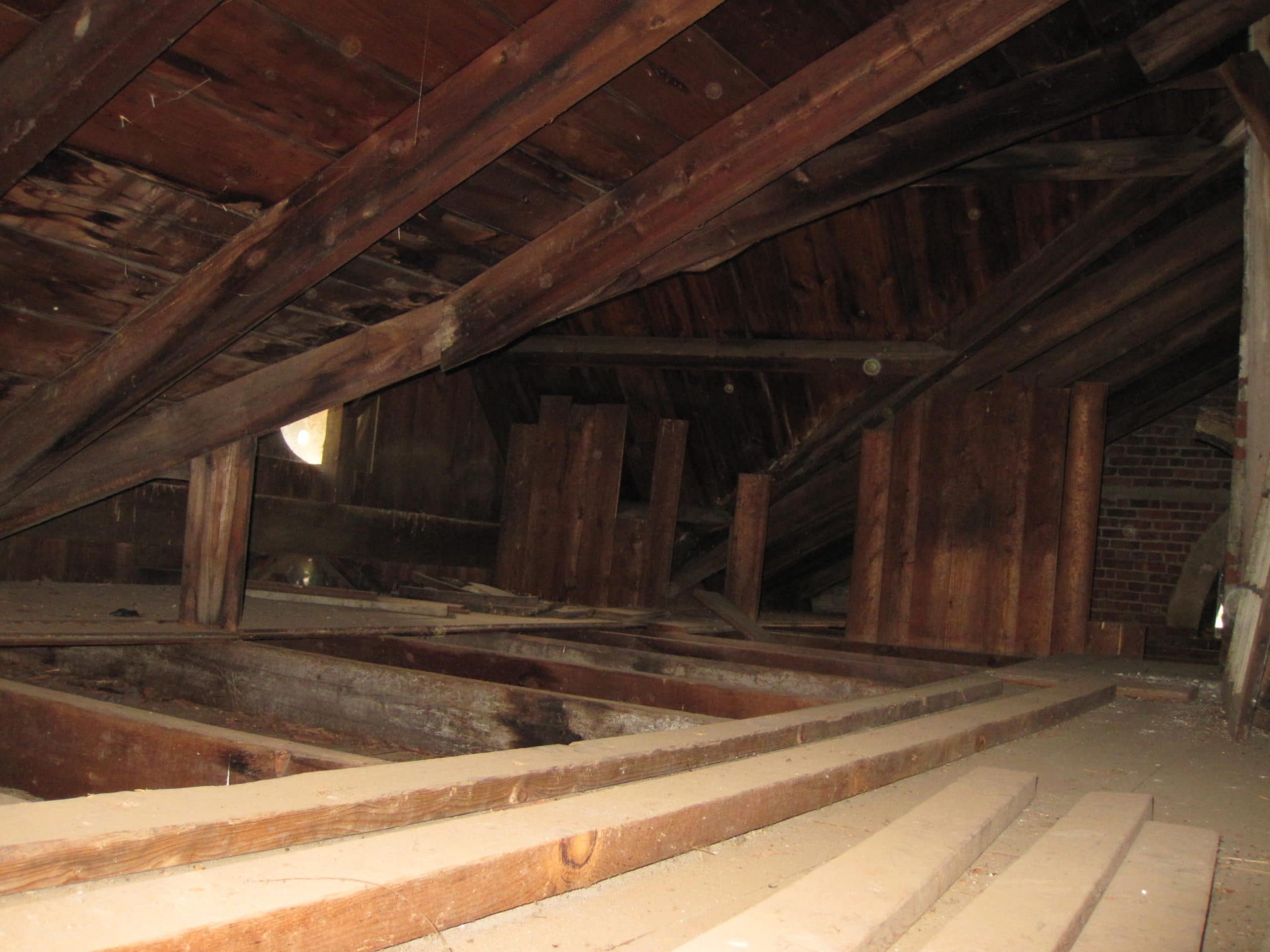

- Visiting the site to document the roof framing
- Analyzing the roof structure, including the effects of the chimney leaning on the roof framing

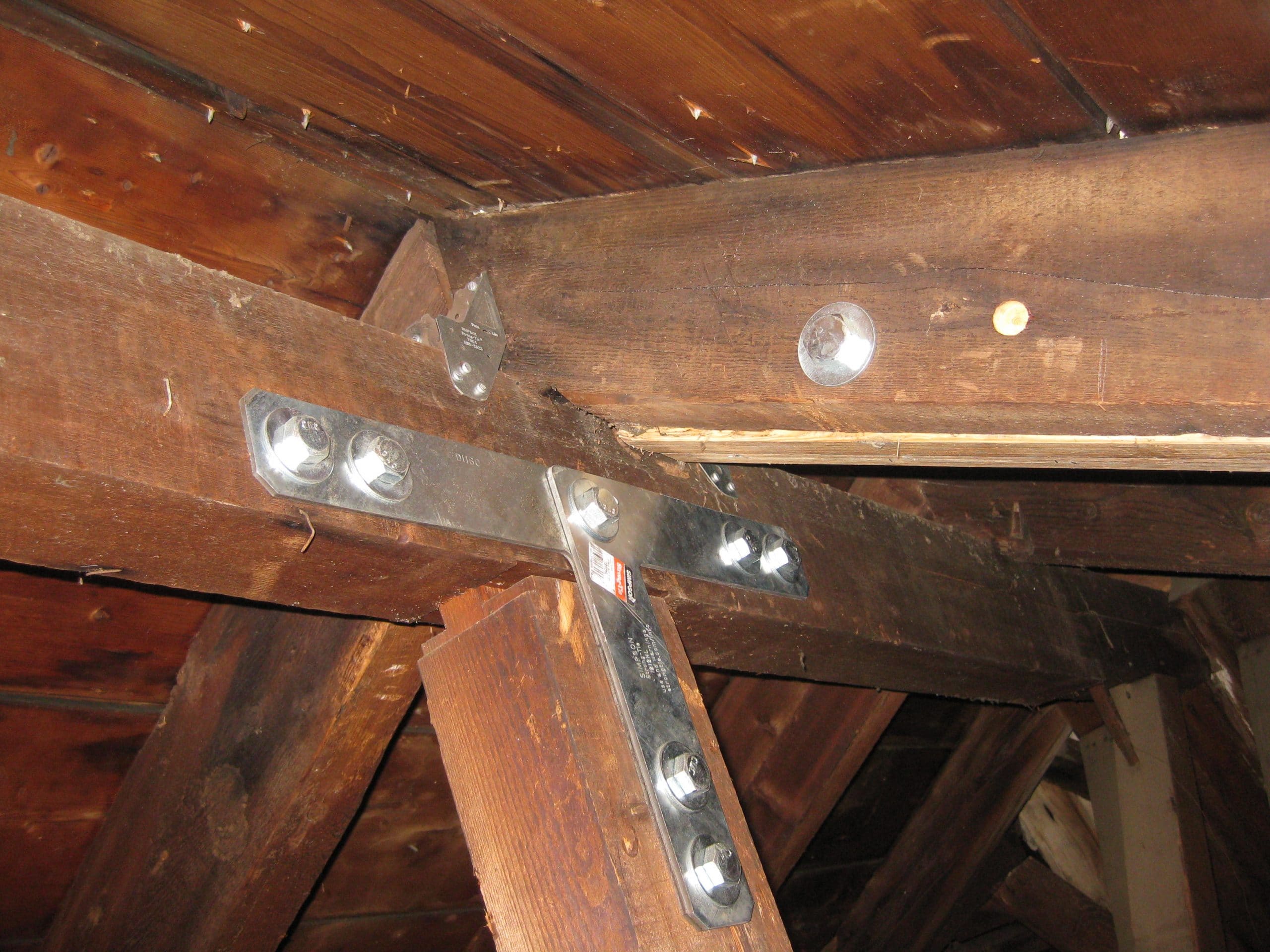

- Developing details to strengthen the sagging rafters around the skylight, supplement the deteriorated valley rafter, and reinforce the existing roof truss connections
- Designing repairs for existing masonry walls
- Collaborating with the architecture team to develop details that would provide the necessary structural capacity, while retaining as much of the historic fabric as possible
1 of 4
Project Summary
2013
Completion Date
Solutions
Repair & Rehabilitation | Preservation
Services
Structures | Building Enclosures
Markets
Culture & Entertainment
Client(s)
Page Ayres Cowley Architecture
Specialized Capabilities
Repair & Strengthening | Preservation
